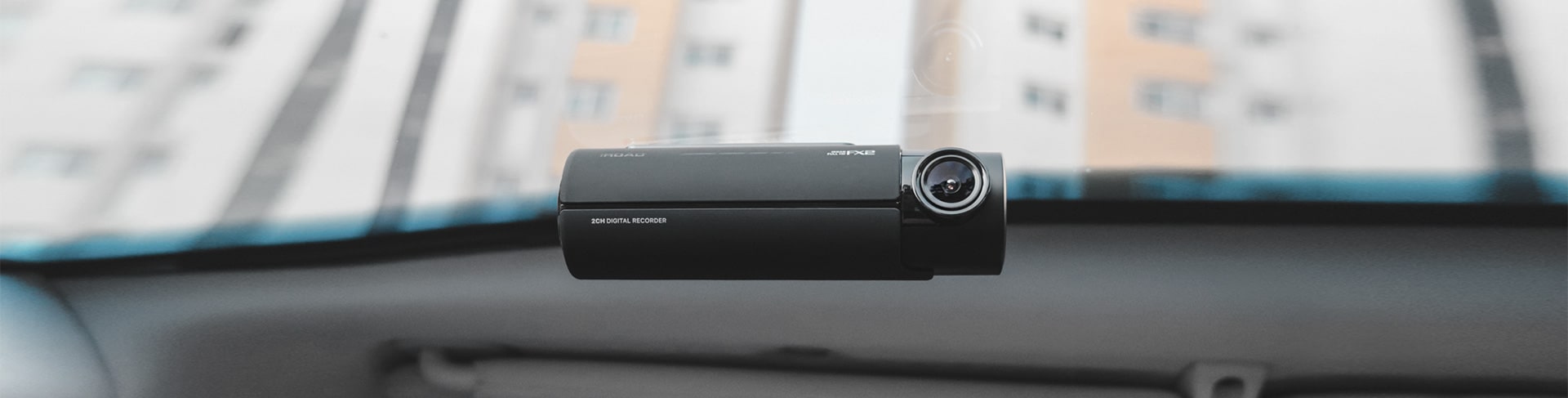

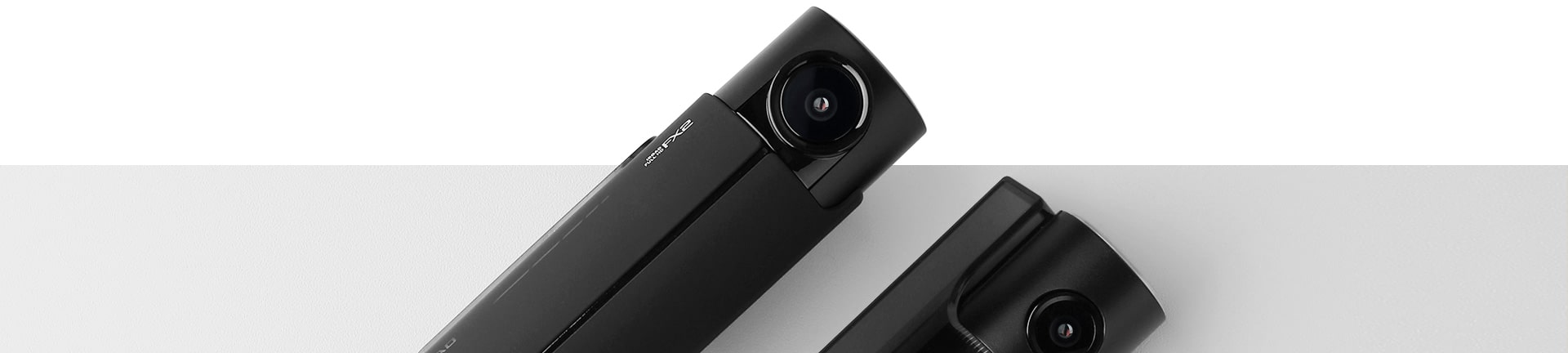

IROAD FX2 Dash Camera

(2 customer reviews)

The FX2 model has been discontinued. Explore our latest models for upgraded features and cutting-edge technology.

DISCONTINUED

Download Brochure

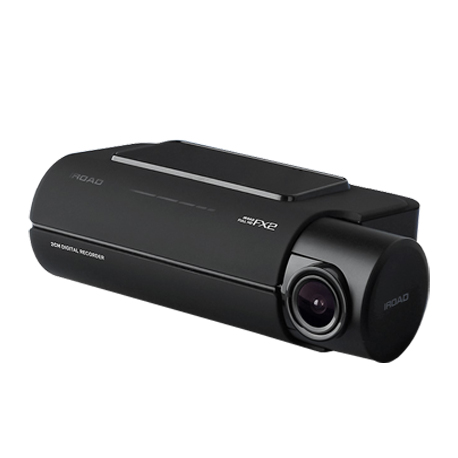

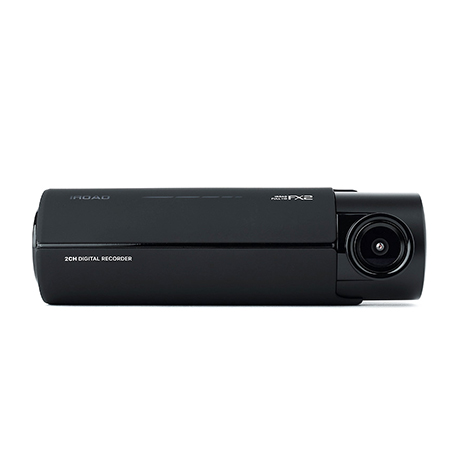

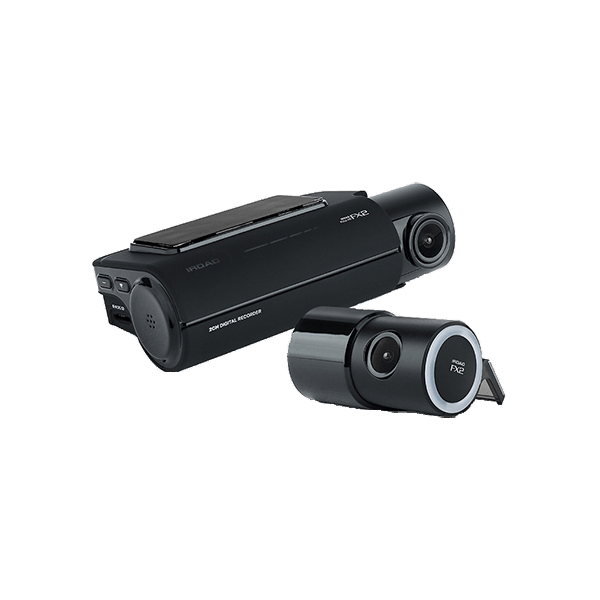

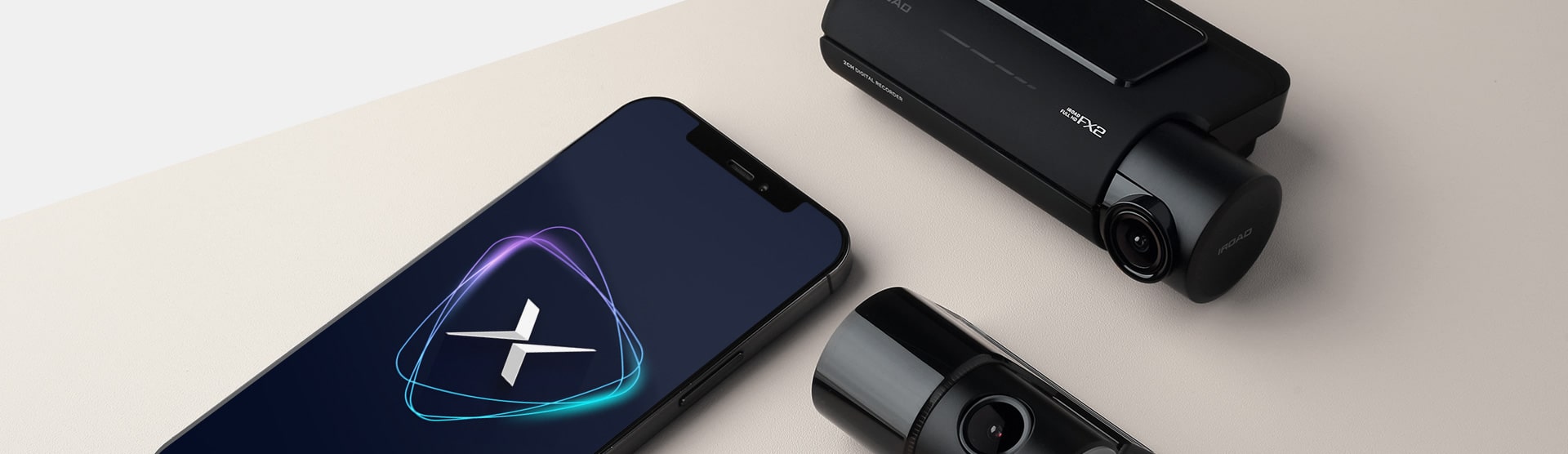

IROAD FX2 Dash Camera

1080P FHD & FHD 2CH

High Definition Video Quality

CMOS Image Sensors allow constant FHD 1080p Front and FHD 1080p Rear recording during both daytime and nighttime along with a 140-degree wide angle lens view. This will minimize blind spots to assure recording of all events without fail.

4X More Recording Time

No More Worries About Storage

Long Drive Recording With

Hyper Lapse
No more worries about missing out while driving long-distance

By compressing the recorded video, Hyper Lapse minimizes the memory space and saves 4 times more footage.

However, when an event or impact occurs, recording frame rate switches automatically to 30 fps to provide clearer images of important moments.

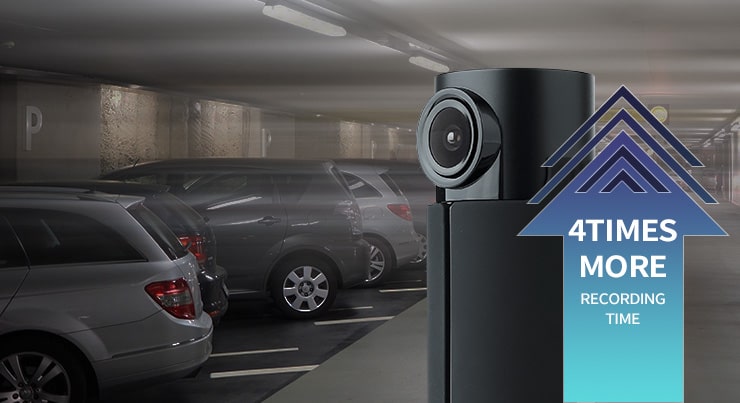

Long Parking Recording With

Time Lapse

Experience continuous Parking Mode recording for a long time with IROAD Time Lapse.

Time Lapse is a low-capacity recording method that minimizes the storage space by compressing and saving at 1fps while in Parking Mode.

On the other hand, when an impact or motion is detected during Parking Mode, it switches automatically to 30 fps to provide clearer images of important moments.

Wide Viewing Angle

140º Wide Angle Lens

The 140 ° angle lens offer a wide angle of view and minimize blind spots, ensuring all scenes that can be seen through the front windshield are completely recorded.

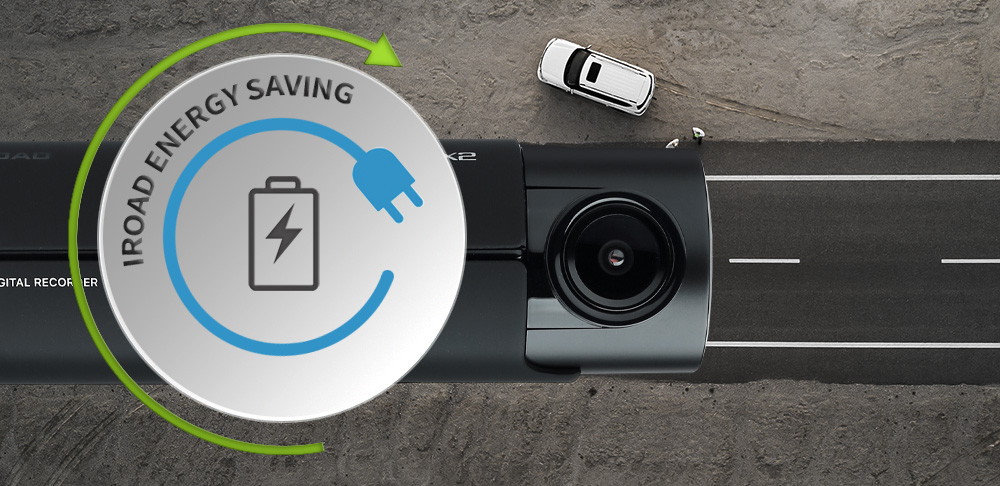

Parking Mode With Minimum Power Consumption

Energy Saving 2.4W

In parking mode, power consumption is greatly reduced to maximize recording time. In addition, to protect the vehicle battery, the dash cam automatically powers off when the vehicle battery voltage falls below a certain set value (Battery Discharge Prevention).

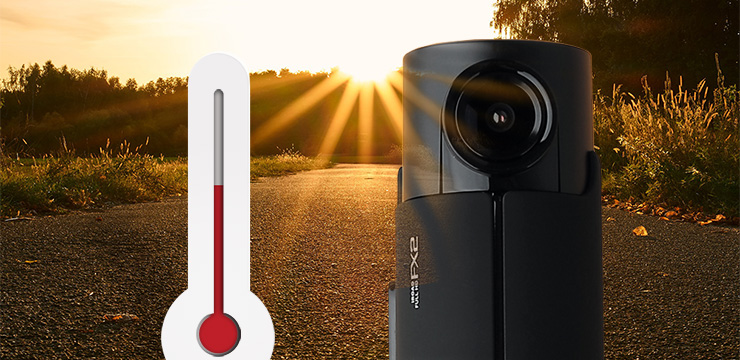

High Durability

High-Temperature Protection

The FX2 models are built to endure both high and low temperatures in order to keep the device running smoothly. The high-temperature protection function makes the device automatically turn off in case of overheating, protecting both the device and the stored data.

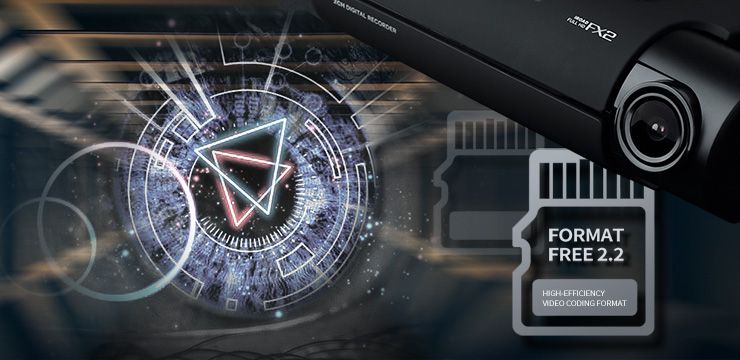

High-Efficiency Video Coding Format

Format Free 2.2

The 2022 newly released IROAD FX2 dash cams use a new file format which allows for a higher compression rate, uses memory space more efficiently and provides outstanding image quality.Format Free 2.2 is a server storage technology developed by IROAD that maximizes the life span, stability and efficiency of memory cards.

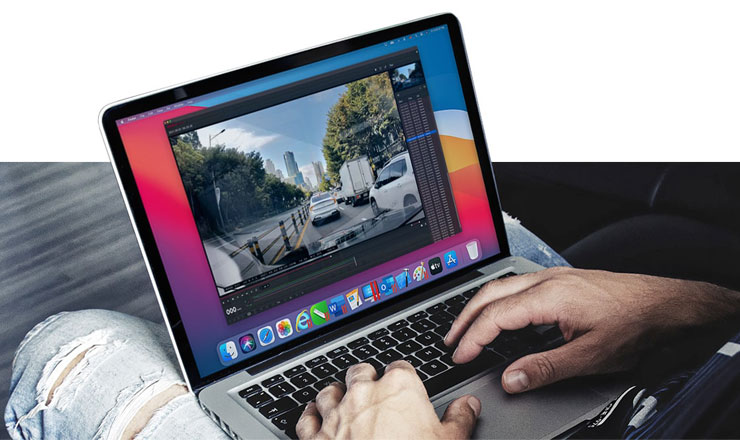

IROAD PC X-VIEW

Detailed Settings And Footage Information

The intuitive and easy-to-use interface of IROAD PC X-VIEW offers a simple and convenient way to watch your recorded videos on your PC or Mac. You can playback and download recorded videos, as well as check your route history and driving speed data.

Extreme memory efficiency

PARKING MODE NORMAL TIME LAPSE
CAPACITY 32GB 32GB
FPS 30 fps 1 fps
RECORDING TIME About 4H About 48H

IROAD DASH CAM FX2

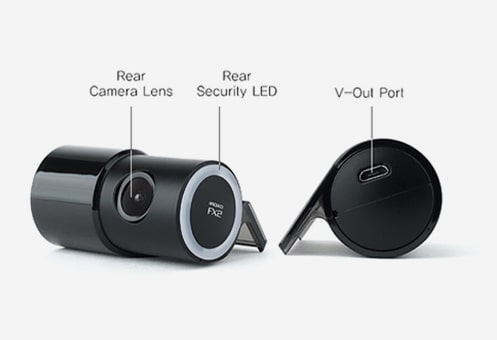

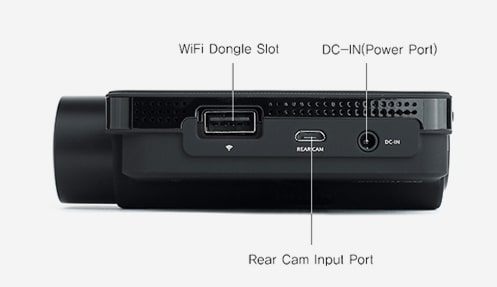

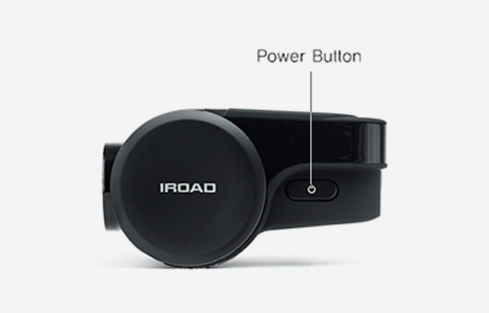

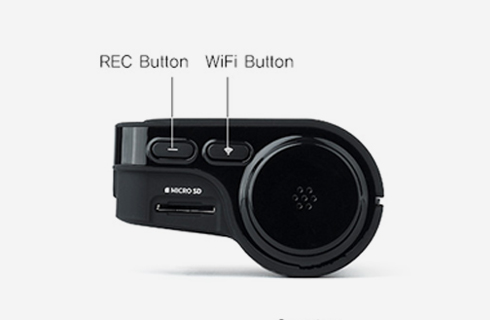

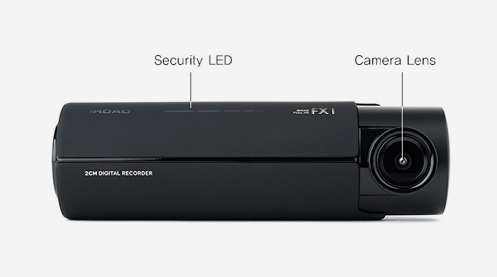

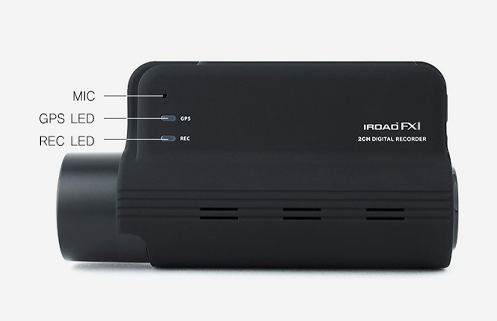

About The Device

About Device
About Device
About Device
About Device
About Device
About Device

Specifications

MODEL

IROAD FX2

RESOLUTION / FRAME RATE

Front-1080p Full HD @ 30fps / Rear1080p Full HD @ 30fps * Hyper-Lapse(Driving Mode) @ 1fps / Time-Lapse(Parking Mode) @ 1fps * Frame rate may vary during Wi-Fi streaming.

IMAGING SENSOR

Front: CMOS Sensor (Approx. 2MP) 1/2.8 inch / Rear: CMOS Sensor (Approx. 2MP) 1/2.8 inch

VIEWING ANGLE

Front: Diagonal 140°, Horizontal 116°, Vertical 61° Rear: Diagonal 140°, Horizontal 106°, Vertical 58°

GPS

Built-in GPS

WI-FI

External(2.4GHz)

IMPACT SENSOR

3-Axis Accelerometer G-Sensor (3D, ±3G)

ADAS 2.0

LDWS(Lane Departure Warning System) FVDW(Front Vehicle Departure Warning) FCWS(Forward Collision Warning System)

RECORDING MODES

Driving Recording (Continuous) Impact Recording, Parking Mode (Impact Recording + Motion Detection / Time-lapse) Manual Recording, Audio Recording

CAPACITY

microSD card up to 256GB

FORMAT FREE 2.2

YES (Adaptive)

LED INDICATORS

Front: Rec LED, GPS LED, Wi-Fi LED, Security LED Rear: Security LED

OPERATION TEMPERATURE

-20℃ – 70℃ (-4°F – 158°F)

STORAGE TEMPERATURE

-20℃ – 80℃ (-4°F – 176°F)

HIGH TEMP CUT OFF

Approx. 70℃ (158°F)

INPUT POWER

DC 12V~24V / DC 5V

CERTIFICATIONS

FCC, CE, RoHS, IC

PRODUCT DIMENSIONS

Front: W 108.2 mm x H 57 mm x D 32.9 mm (Weight 100g) Rear: W 59.6 mm x H 27.9 mm (Weight 30g)

SOFTWARE

IROAD X-View (PC) - Windows 7 or higher and Mac (OS X 10.7 64Bit) or higher

APPLICATION

IROAD X-View (Mobile) - Android 6.0, IOS 10.0 or higher : Firmware update supported

Fc Logo

IROAD DASH CAM FX2

Package Contents

Front Camera
Front Camera
Rear Camera
Rear Camera
Wi-Fi Dongle
Wi-Fi Dongle
MicroSD Card
MicroSD Card
Uninterrupted Fuse Cable
Uninterrupted Fuse Cable
Rear Camera Cable
Rear Camera Cable
Quick Guide
Quick Guide
Mount with 3M tape(1ea)
Mount with 3M tape(1ea)

gallery

Reviews

2 reviews for IROAD FX2 Dash Camera

  1. Rogerbid –

    Off to a terrific start – After a disappointing experience with another brand of camera, I am blown away by the prompt reply to my initial query following acquisition of my FX2 camera. My first ever question to Support was answered fully within 10 minutes, setting a high standard for Customer Support. Well done!!
    Anticipating a very satisfactory experience with the new camera.

  2. Colin –

    Great Customer Service Experience – I just purchased a new Mazda Cx5 and had the Road FX2 installed by the dealer prior to deliver. I tried to connect my iPhone to dash cam but was unable. The manual didn’t help it needs to be more informative especially with modern cars with CarPlay, Bluetooth etc. On Saturday I sent an email to IRoad expecting I would get a reply sometime Monday. I received an informative reply within minutes explaining exactly what I needed to do to get connectivity. That’s Excellent customer service.

Add a review

Your email address will not be published. Required fields are marked *

NIGHT VISION

Night Time Picture Quality Correction

Videos recorded by a dash cam in low light environments such as dark alleyways or underground parking lots can pose difficulties when you try to accurately identify information from the image.IROAD NIGHT VISION employs the new ISP (Image Signal Processing) technology and the real-time image processing function to provide brighter images than our earlier models when recording at nighttime during Parking Mode.

AUTOMATIC EXPOSURE

Light Exposure

Sudden light exposure while driving, such as strong direct sunlight or the light of incoming vehicles at night, can sometimes affect your vision and make it difficult to assess the situation.The IROAD FX2 dash cams automatically adjust the amount of light exposure to provide bright and clear images in any situation.

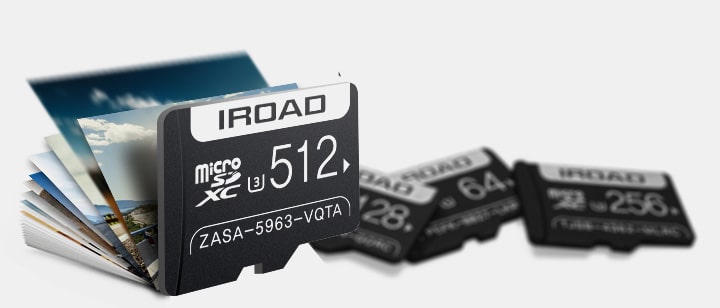

Storage Time By Memory Card

[Resolution]

Front:1080p FHD / Rear:1080p FHD

  • A = Driving mode 100% @30fps

    • 32GB : About 4H 20Min
    • 64GB : About 8H 40Min
    • 128GB : About 17H 20Min
    • 256GB : About 35H 40Min

  • B = Driving mode(Hyper Lapse) 100% @1fps

    • 32GB : About 48H
    • 64GB : About 96H
    • 128GB : About 192H
    • 256GB : About 382H

  • C = Parking mode(Time Lapse) 100% @1fps

    • 32GB : About 48H
    • 64GB : About 96H
    • 128GB : About 192H
    • 256GB : About 382H

  • D = Parking Impact 50% + Motion 50% @30fps

    • 32GB : About 4H 30Min
    • 64GB : About 9H
    • 128GB : About 17H 40Min
    • 256GB : About 36H

  • A + D = Driving mode 50% + Parking mode 50%

    • 32GB : About 4H 10Min
    • 64GB : About 8H 50Min
    • 128GB : About 17H 30Min
    • 256GB : About 35H 50Min

  • A + C = Driving mode 50% + Time Lapse 50%

    • 32GB : About 22H 40Min
    • 64GB : About 45H
    • 128GB : About 89H 40Min
    • 256GB : About 180H

  • B + C = Hyper Lapse 50% + Time Lapse 50%

    • 32GB : About 48H
    • 64GB : About 96H
    • 128GB : About 192H
    • 256GB : About 382H

ANYWHERE & ANYTIME, CONNECT THROUGH Wi-Fi

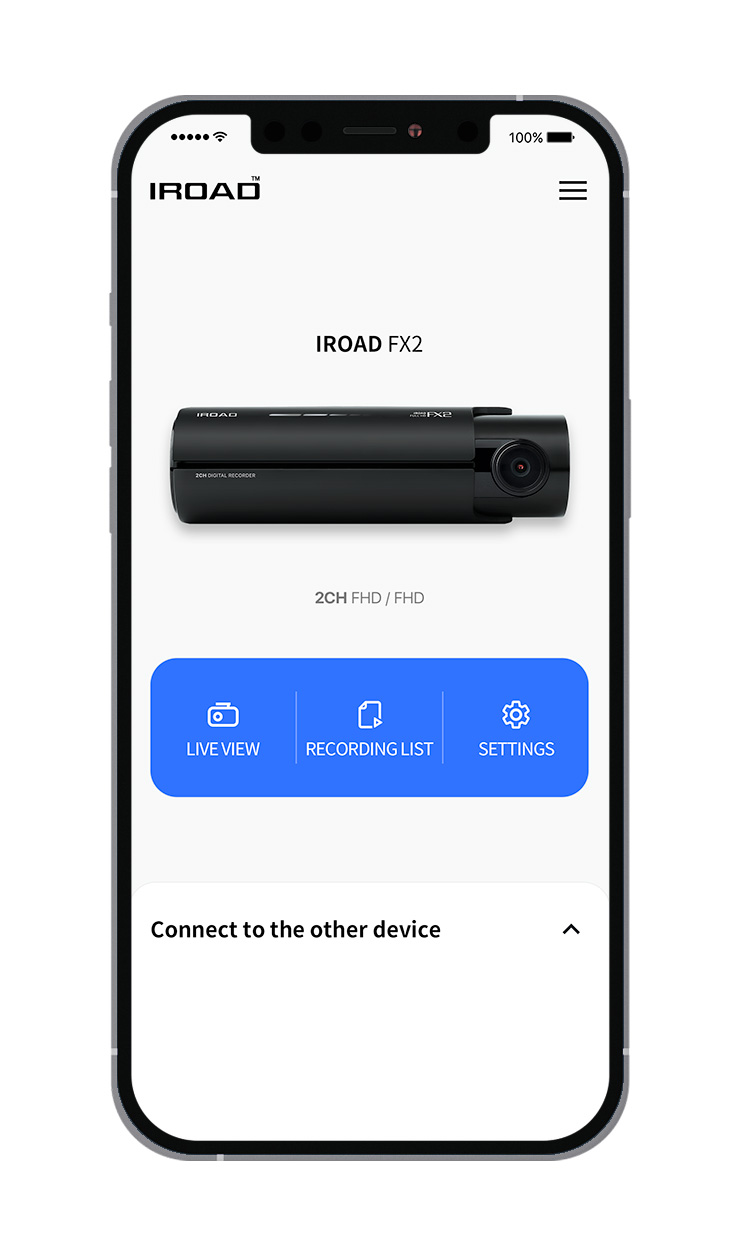

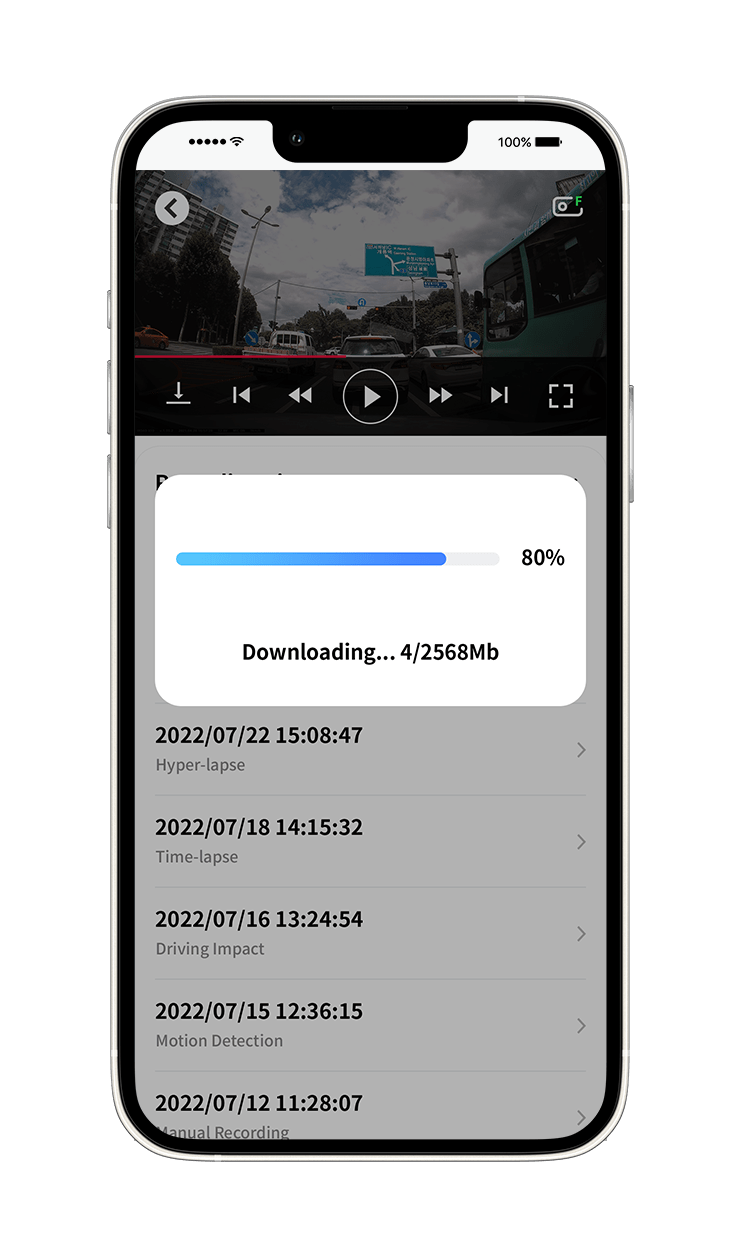

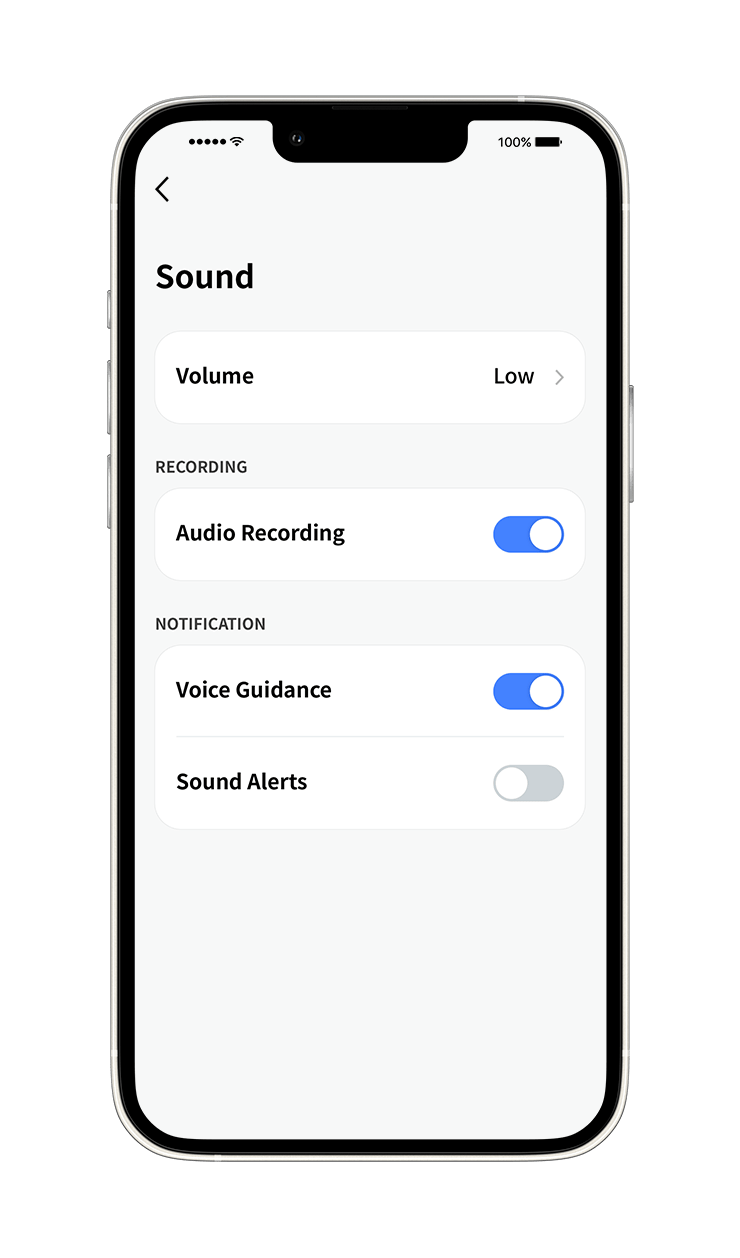

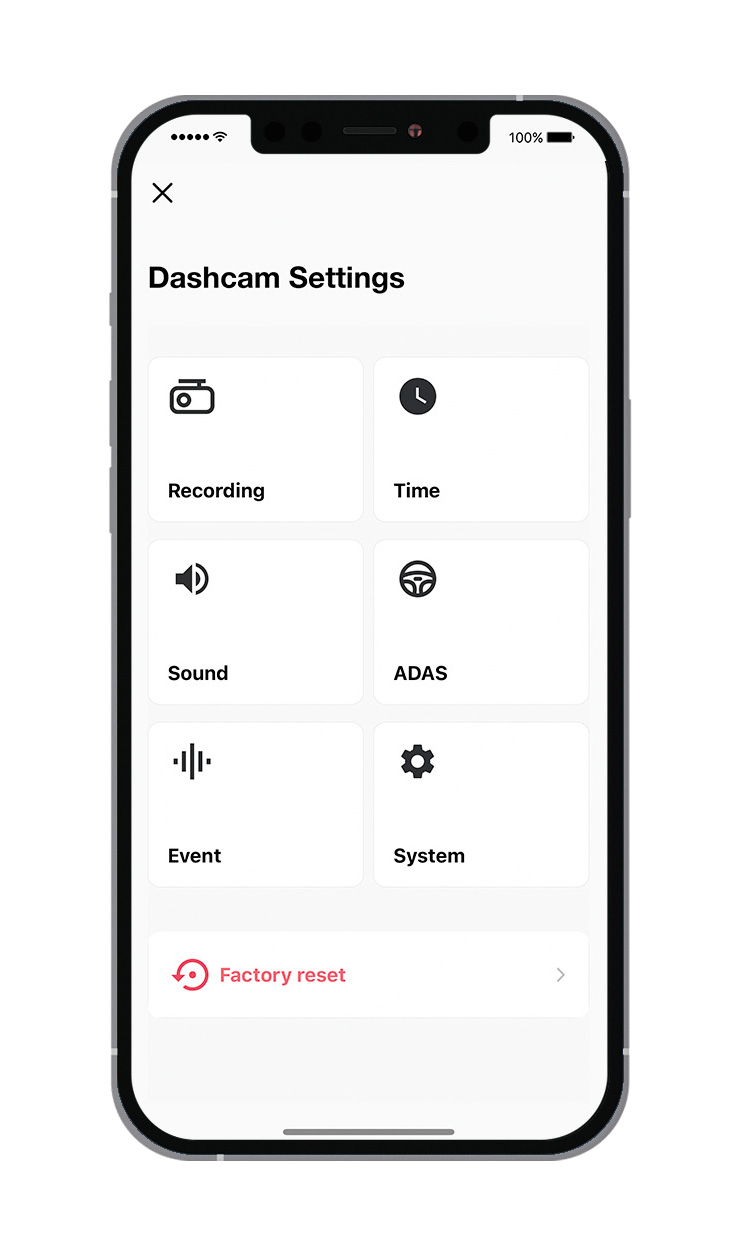

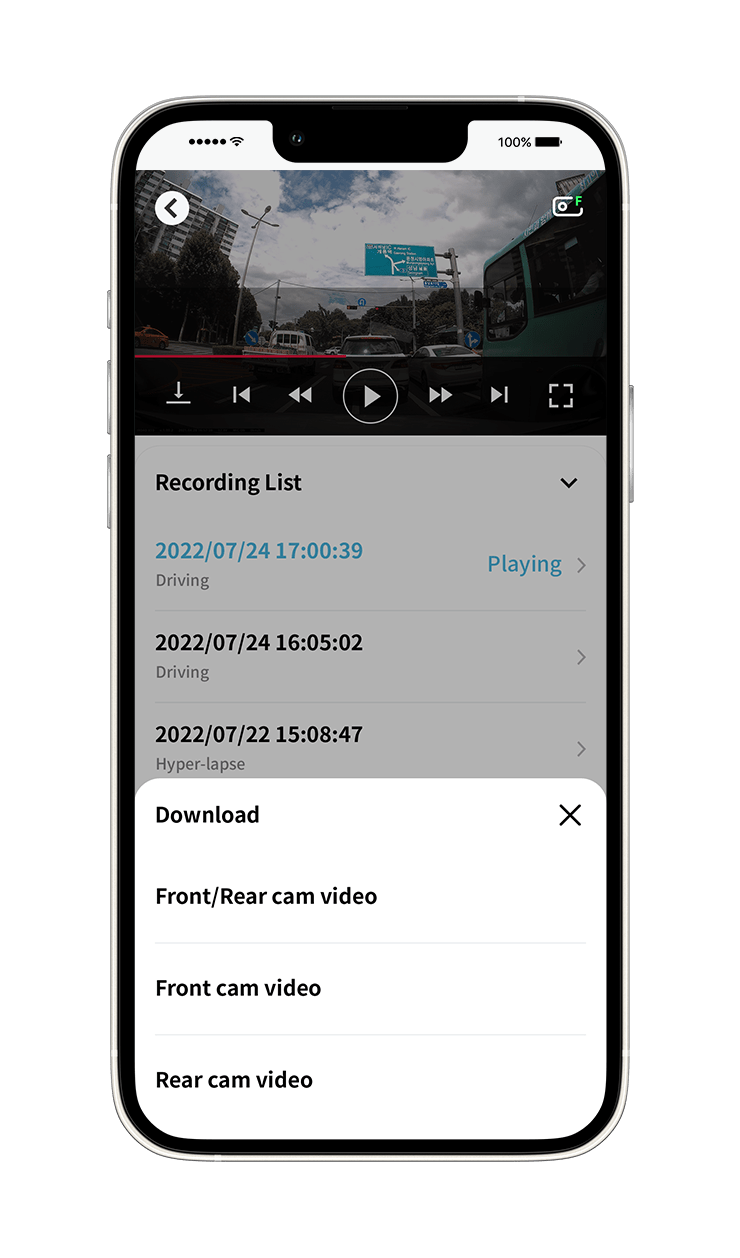

IROAD Mobile X-View

Compatible with iOS / Android

Designed For The Smarter Use Of IROAD Dash Cams

The IROAD Mobile Application X-VIEW is free and allows you to save the dash cam’s footage as video or images directly on your smartphone.Also through the app you can access Live View, do backups, upload directly to social media and many other things, including automatically updating your dash cam’s firmware.

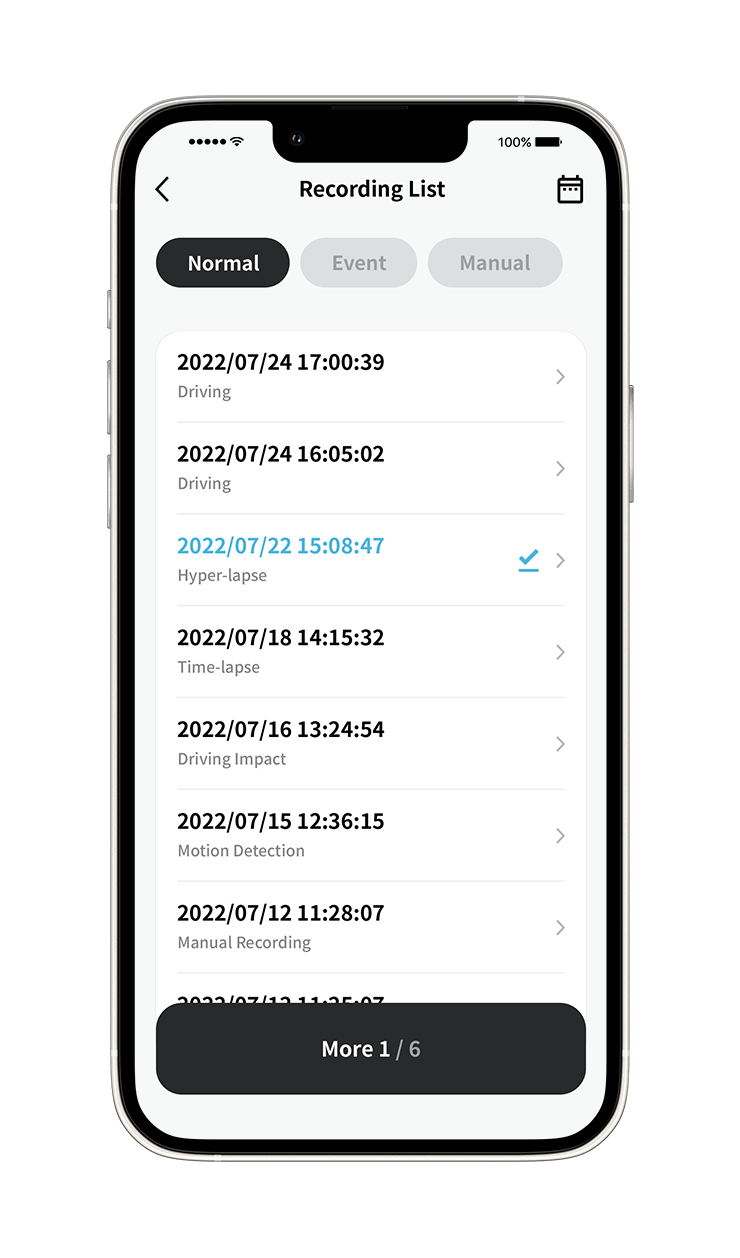

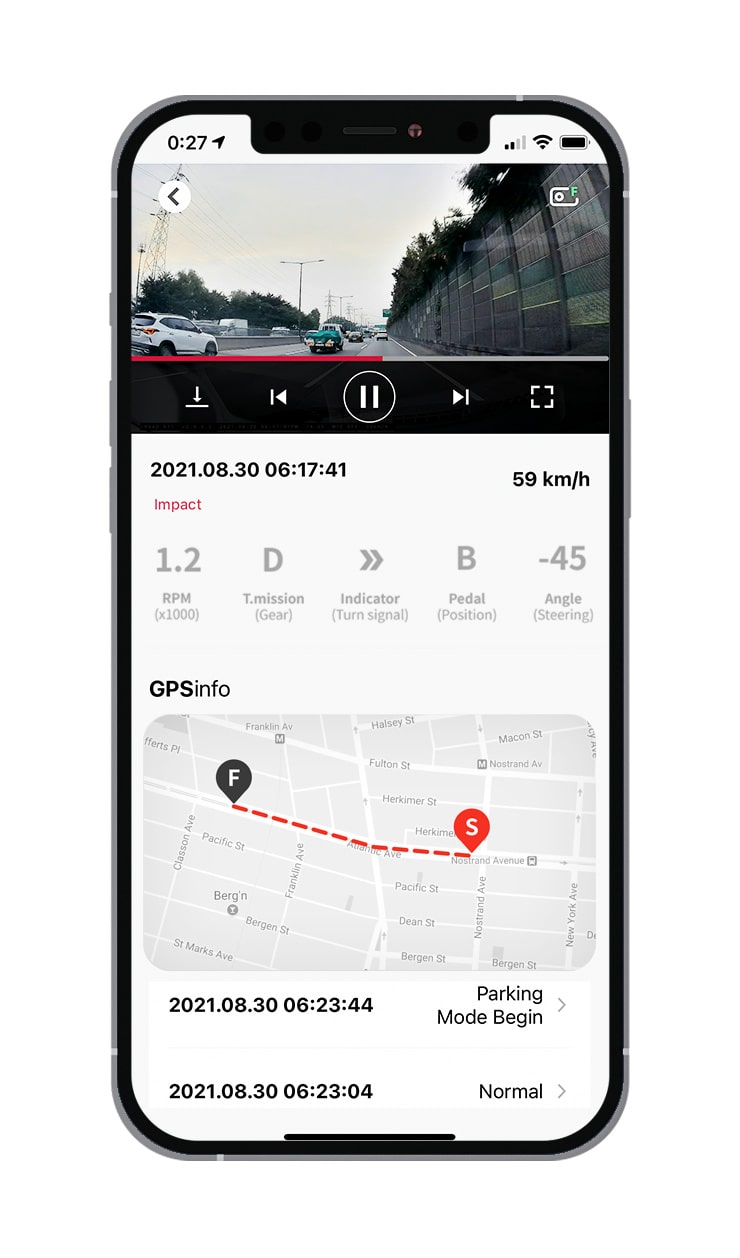

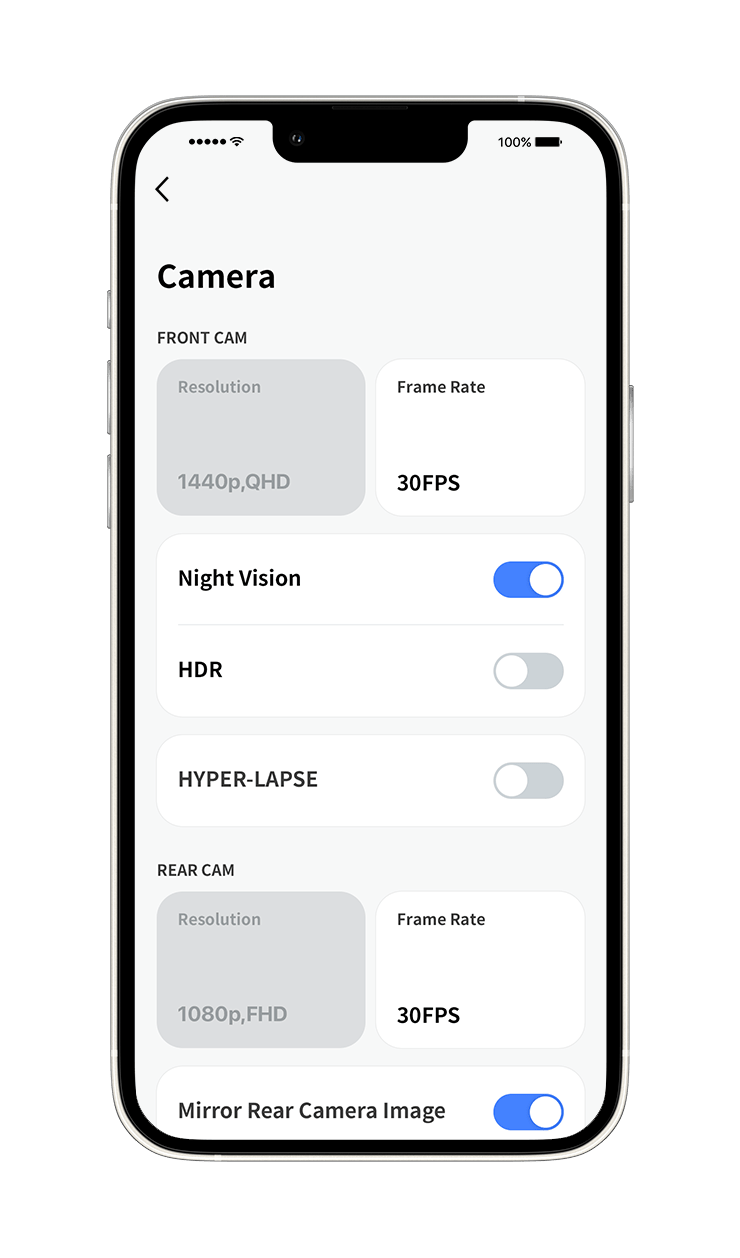

Recording – IROAD Mobile X-View

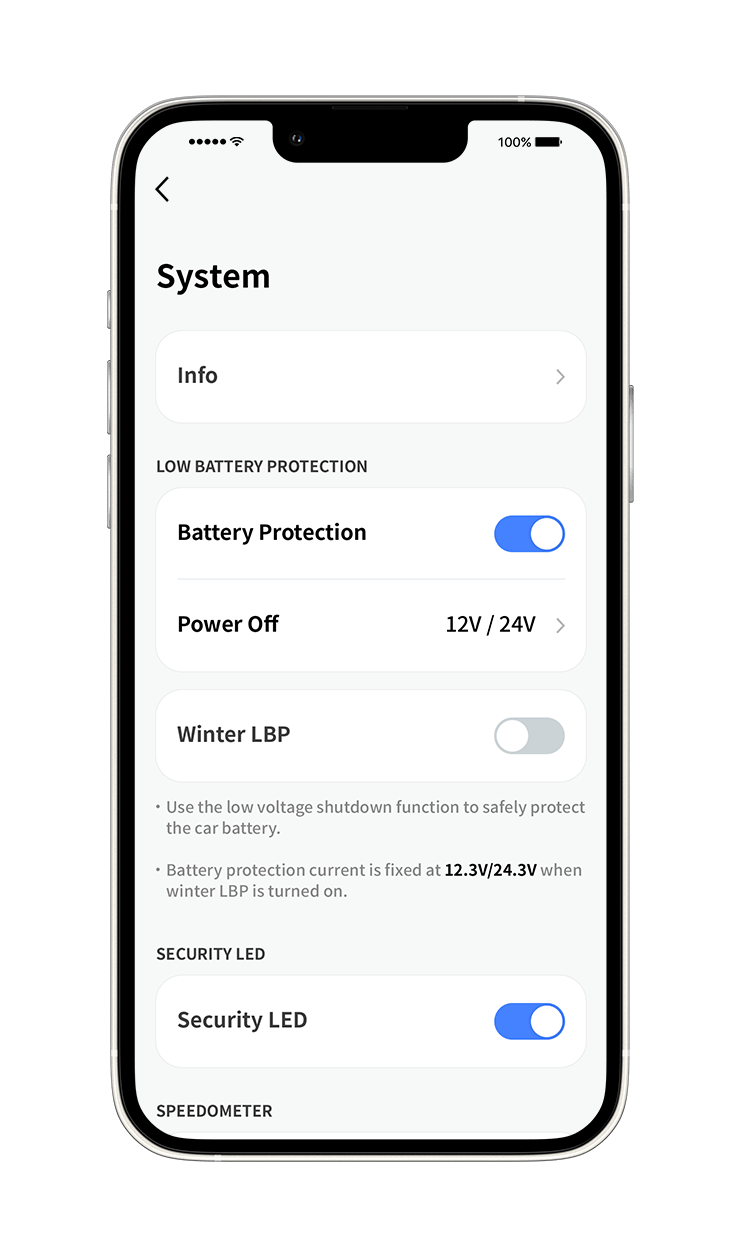

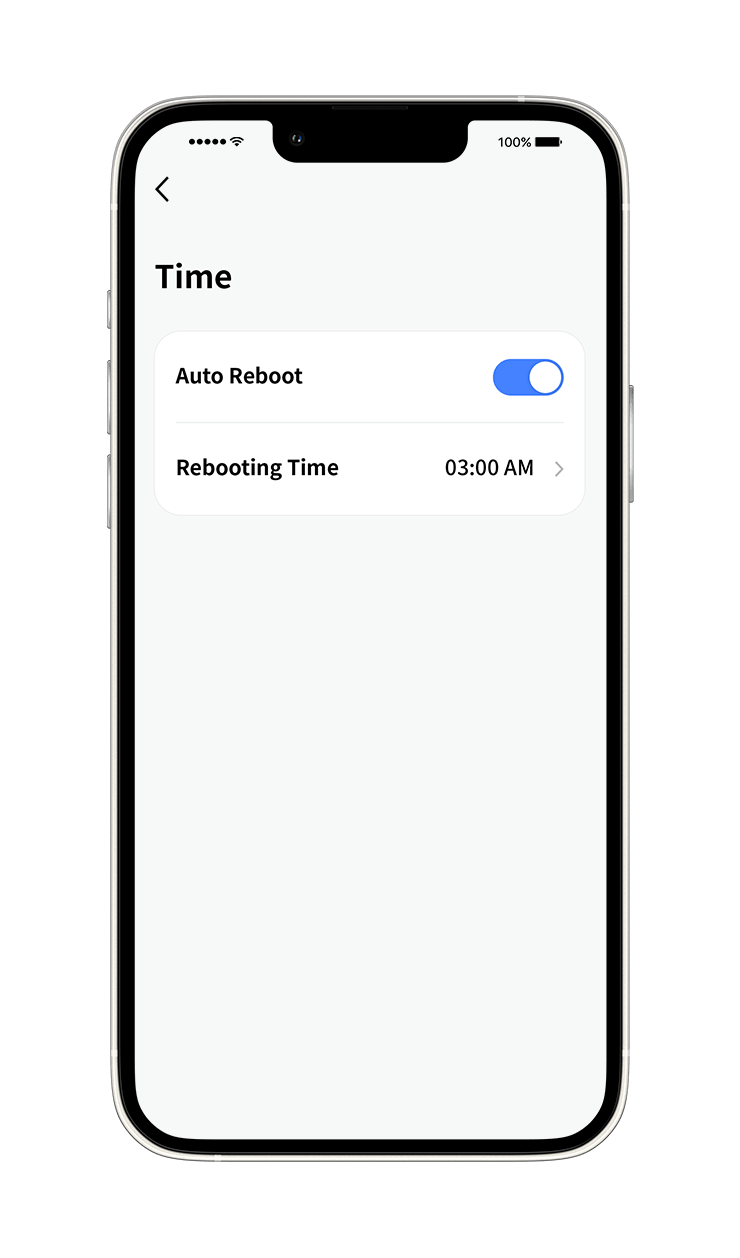

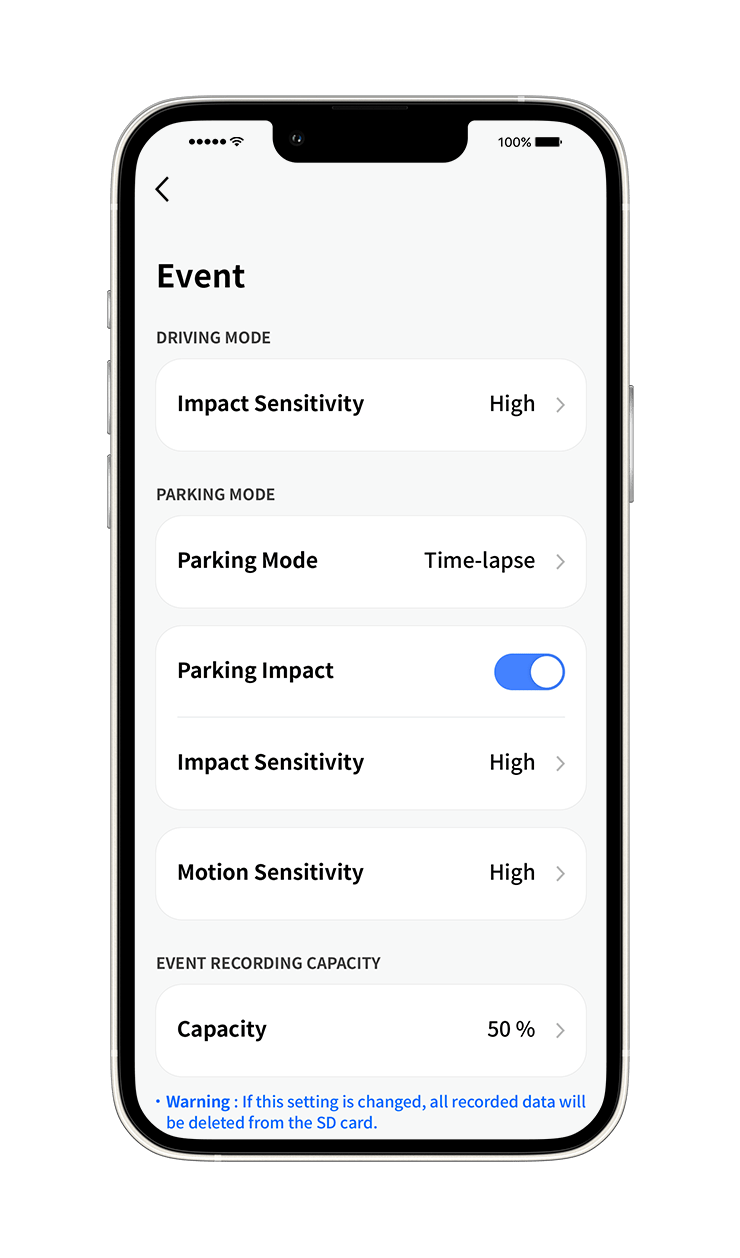

System – IROAD Mobile X-View

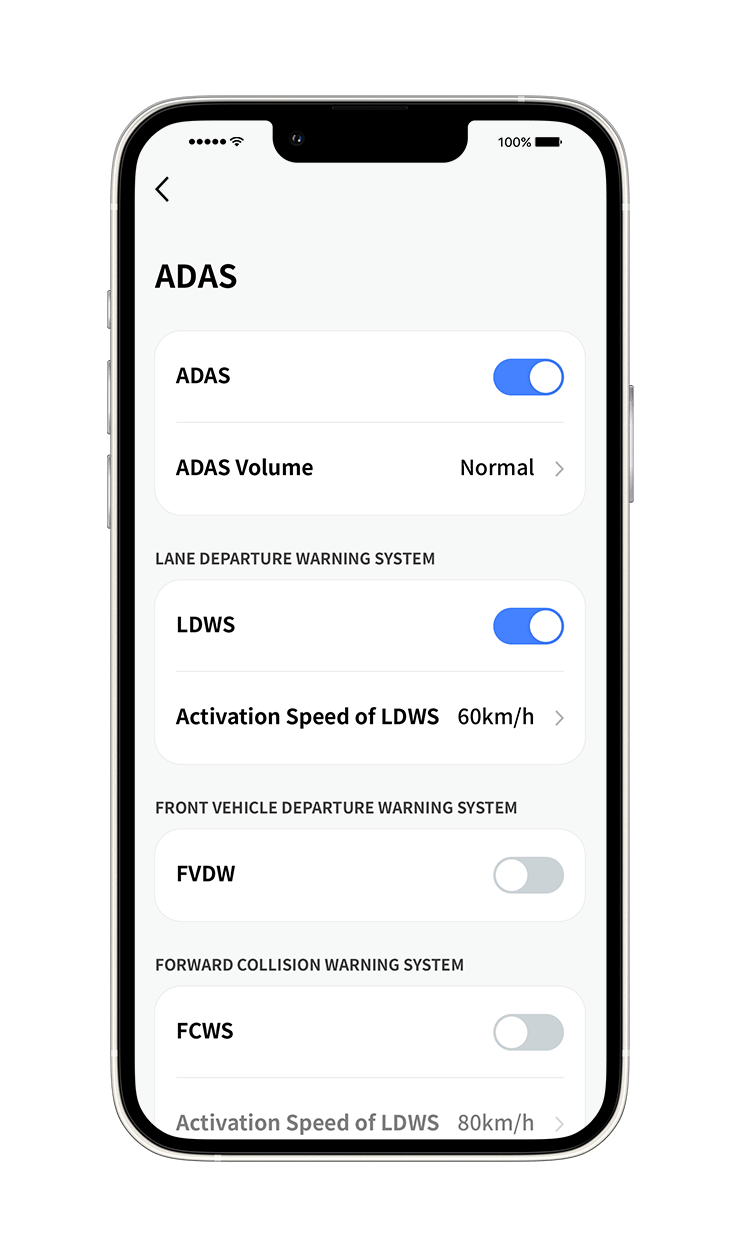

ADVANCED DRIVER ASSISTANCE SYSTEM

ADAS 2.0(VER.2022)

The IROAD FX2 is equipped with the Road Safety Warning System that provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW). It detects road markings and gives voice warnings to the drivers if the vehicle begins to stray from its lane or when it is at risk of an imminent crash.
fx_adas_ldws
LDWS

Lane Departure Warning System

LDWS operates in a way that the front camera recognizes the road lane in real time and, if the driver falls asleep while driving or drives poorly, causing the car to depart the lane, it will notify about it through the preset warning sound.
LDWS Warning Sound

fx_adas_ldws
FVDW

Front Vehicle Departure Warning

When the car is stopped at an intersection or in traffic, FVDW informs the driver when the vehicle in front has started to move, preventing delayed departure. FVDW Warning Sound

fx_adas_ldws
FCWS

Forward Collision Warning System

The FCWS function calculates the average distance from the vehicle in front and alerts the driver in advance when reaching the range of safe breaking distance in order to prevent a collision. FCWS Warning Sound

fx_adas_ldws
BUILT-IN GPS

Comprehensive Driving Data Through

The GPS data in the IROAD FX2 can precisely pinpoint the vehicle’s location and routes on the map, while also displaying the driving speed. This helps to more accurately assess the situation and the circumstances in case of an accident.

Various Autonomous Recording Modes

  • Continuous Recording Mode

    This mode is activated automatically when you start the engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism

  • Event Recording Mode

    It will automatically start an Event recording when motion or impact is detected around the vehicle during both parking and driving mode.

  • Manual Recording

    Generate Event files on request when witnessing a traffic incident or something interesting on the road that you want to make sure you catch on camera. When pressing the Manual Recording button, the dash cam records and separately stores a few seconds of footage before (5-10s) and after (15-20s) that moment as a Manual Recording file protected from overwriting (limit before overwriting: up to max. 4% of total SD card storage).

  • Parking Impact Buffered Recording

    When in Parking Mode, the built-in G sensor detects when an impact with the vehicle has occurred, for which the dash cam generates an event file stored separately, protected from overwriting (if SD card storage is assigned to Event files through the dash cam settings). The saved video will include a few seconds before the impact occurred (5-10s) and a few seconds after (15-20s). This can be turned ON regardless of the Parking Mode used (Time-lapse or Motion Detection).

  • Time-Lapse Parking Mode

    The dash cam will continuously record at 1fps during Parking Mode. If Parking Impact is turned ON, the frame rate will briefly switch from 1fps to 30fps when recording the impact, then the dash cam will continue recording at 1fps.

  • Motion Detection Parking Mode

    The dash cam stays “asleep” until it detects movement around the vehicle. In this mode, any motion happening around the vehicle in recorded in an event file stored separately. The saved video will include a few seconds before the motion was detected (5-10s) and a few seconds after (15-20s).
